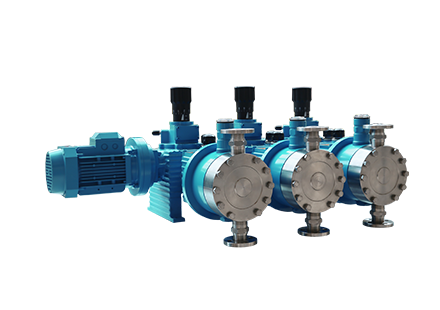

◆ The pump head can be divided into hydraulic diaphragm type, plunger type and piston type;
◆ Motor adopts vertical installation, safe and leak-free;
◆ Hydraulic diaphragm pump adopts built-in safety valve and replenishing valve, which can automatically exhaust and replenish oil, with superior and reliable performance;
◆ Adopt patented integral sleeve adjustable eccentric transmission mechanism, which is simple and reliable, and the stroke can be adjusted steplessly 0-100%;
◆ High precision one-way valve group is used at the inlet and outlet, which effectively ensures the measurement accuracy and flowability;
◆ High-performance plunger and special packing, diaphragm, seal assembly, long service life and superior sealing performance;
◆ Oil-immersed lubrication to ensure long-term and reliable use of the transmission mechanism;
◆ Three or more heads are connected in parallel, up to 12 heads; can convey the same medium and reduce the pulse;
◆ It can also transport different media, and each pump head can independently adjust the flow rate and use it as a proportional pump;
◆ Adjustable range: 10 ~ 100%, measurement accuracy: ± 0.5%;
◆ Various flow adjustment methods, including manual, electric, pneumatic, frequency conversion adjustment.
